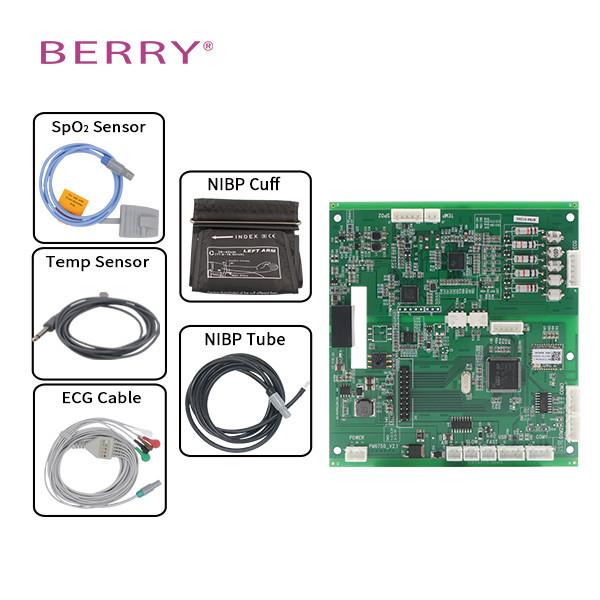

Berry PM6750 Veterinary Blood Pressure with OEM Patient Monitor Module

Product features:

2. Pressure measurement range: -50~+300mmHg, width:d.c.~12.5Hz
3. Safety Type: CF Type; adopt high pressure isolationcomponents, reach 1500VAC,middle isolation area gap 8mm
4. Small size, low power consumption, high reliable performance

Introduction

OEM 6-parameter patient monitor module, which including six-parameters (ECG, NIBP, Spo2, Resp, Temp and PR) and can be widely used for platforms such as windows, liux, winCE, Andriod, etc. Also can be connected with computers and mobile phones by RS232, USB and Bluetooth.

Features:

-- Supporting LED display, can be used with patient monitor and handheld spo2/temp oximeters.
--It can indicate low power display and automatically powered off for handheld spo2 oximeters.
--Small volume, flexible installment mode, high reliable and accurate test.
--Providing quick and accurate oxygen saturation and HR.
--Using improved digital signal processing technology, effectively control the body movement and --low perfusion measurement
--Can provide the best test sensitivity and stability to meets ICU, CCU and anesthesia operation appliance.
--Comparing with many clinical trials of blood gas analyzer to ensure its accuracy.
--In accordance with function safety design of CE requirements.
--Suitable for adult, pediatric and neonate. - Single power 3.0V-5.0V work, low consumption.
--Display volume plethysmographic wave and the pulse intensity.
--A simple communication protocol or TTL connection, easy integration(the default output is 232 level)
--Fully compatible with BCI communication protocol(except temp).

Details of Six parameter

ECG

• Full lead: I, II, III, aVL, aVR, aVF and V1,V2,V3,V4,V5,V6
• Gain:2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV
• Scanning speed: 12.5mm/s, 25mm/s and 50mm/s
• Band width: 0.05Hz-100Hz(3dB)
• Diagnostic mode ,1-40Hz Monitor mode ,0.1-25Hz Operation mode

Heart rate

• Scope: 0 times/minute to 250 times/minutes
• Accuracy: ±2 time/minute

SpO2

• Measurement scope: 35%-100%
• Accuracy: ±2% in the range of 90%~100% ,±3% in the range of 70%-89%

NIBP

• Measurement method: Electric oscillator
• Cuff inflation time: less than 15 seconds
• Initial inflation pressure: Dynamic state 24kPa (180 mmHg)
• Measurement range:
• Systolic blood pressure: 4kPa -34kPa (30mmHg -255mmHg)
• Diastolic pressure: 2kPa -29.3kPa (15mmHg -220mmHg)
• Mean pressure: 2.7kPa~31.3kPa (20mmHg~235mmHg)
• Measurement accuracy:Static pressure: ±3mmHg

Resp

• Measurement methods: Chest impedance method or concentration of carbon dioxide at end of respiration
• Range of chest impedance method: 0 time/minute -100 minutes/minute
• Accuracy of chest impedance method: ±2 time/minute

Temp

• Single/double path
• Type: Vascular/surface temperature
• Scope: 20°C ~50°C
• Accuracy: ±0.2°C
