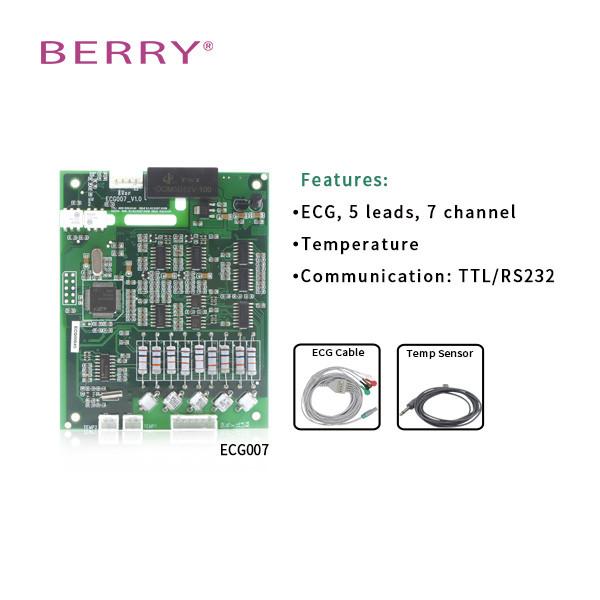

ECG RESP TEMP Module ECG007 Patient Monitor Module
Feature
1. Small volume,flexible installment mode,high reliable and
accurate test.
2. Excellent reliability and clinical monitoring fuction.
3. It has implemented the monitor of 7 channel ECG, 1channel RESP
and2channels temp on the same time.
4. In accordance with function safety design of CE requirements.
5. In accordance with all the ecg/temp monitoring work,
6. Suitable for adult,pediatric and neonate.
7. Single power 5V work,low power consumption design.
Specification
ECG:
Full lead: I, II, III, aVL, aVR, aVF and V
Gain 5mm/mV, 10mm/mV, 20mm/mV and 40mm/mV
Scanning speed: Changeable with three grades of 12.5mm/s, 25mm/s
and 50mm/s
Band width 0.05Hz-100Hz(3dB)
Heart rate:
Scope: 1 times/minute to 300 times/minutes
Accuracy: ±1 time/minute
Variation of heart beat LORENZE drawing:Analysis on heart beat data
for the
current 5 minutes with histogram during RR period.
Resp
Chest impedance method or concentration of carbon dioxide at end of
respiration
Scope of chest impedance method 0 time/minute – 100 minutes/minute
Precision of chest impedance method 1 time/minute
Detection scope of carbon oxygen at end of respiration
3mmHg-75mmHg; 0.4%vol-9.9%vol
Detection scope of respiration rate: 2 times/minute ->60
times/minute
(including baby)
Detection precision of respiration rate: ±1 time/minute
Temp
Single/double path
Type: Vascular/surface temperature
Scope:20℃~50℃
Accuracy±0.2℃
Introduction
The YS3000 is a stand-alone external pulse oximetry module that can
be externally connected to a multiparameter monitor,or a hand-held
oximeter and other devices that require measurement of oxygen
saturation. Connecting to your device via a simple TLL interface,
the module can measure blood oxygen saturation accurately with a
SpO2 sensor.
Product Description
| ►Scope: 20-50℃ |
| ►Accuracy: ±0.2℃ |
| ►Working voltage: D.C.5v |
| ►Size: 100*80*25mm |
| ►Weight: 60g |
| ►Delivery time Mass production: about 15 days (2000pieces) |
| ►OEM: about 25 days |
