VET Veterinary pulse oximeter LCD Display SpO2 PR Animal
Convenient
This monitor integrates the functions of parameter
measurement,waveform monitoring, etc.Its color
TFT liquid crystal display is able to show patient
parameters and waveform clearly. The monitor
also features compact size,lightweight,easy-to-carry
handle and built-in battery,which make it portable in
clinic,ward,even at home.
Body parameters
This monitor is capable of monitoring parameters:
ECG(Eletrocardiograph), HR(heart rate),
NIBP(noninvasive blood pressure), Spo2,
PR(Pulse rate), TEMP(body temperature).
operation
The One-Button-Design make the monitor to be
a easy-to-use system,so you can perform the
operations conveniently.Besides,this monitor can
be connected with the other smart terminals such
as PC,iphone and Android phones.

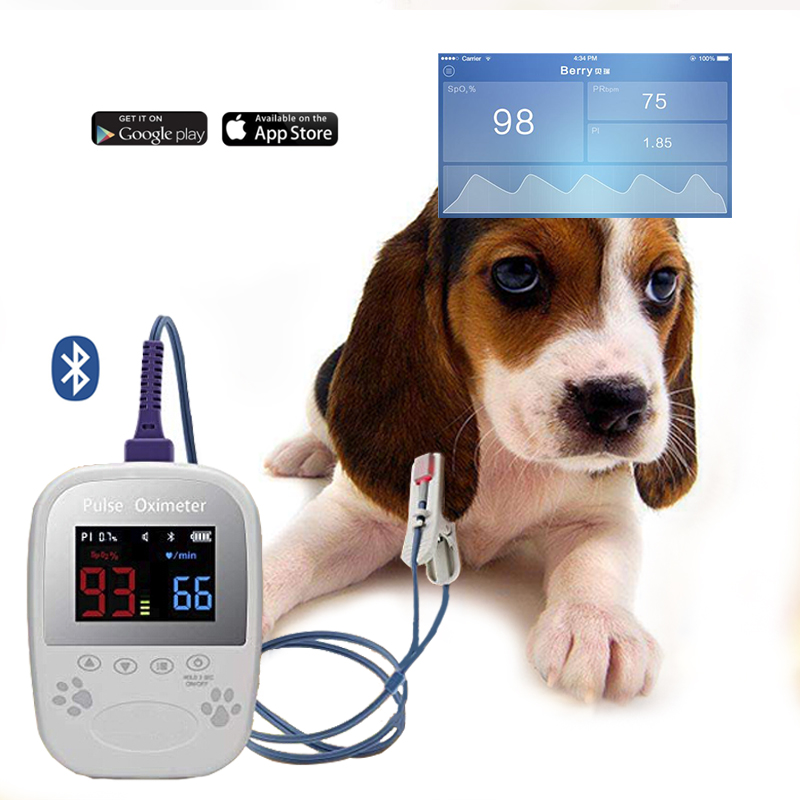

Buletooth
Can be connected to the phone or pad via Bluetooth , and through
the APP data analysis and preservation.
SPECIFICATION
Operation system | Android |
ECG | Waveform: Lead I Band width 0.05Hz-100Hz(3dB) diagnose mode 1-40Hz monitor mode 0.1-25Hz operation mode |
Resp | |
Temp | Type: Vascular/surface temperature Scope: 20℃-50℃ Accuracy: ±0.2℃ |
NIBP | Detection scope: Systolic blood pressure: 4kPa-34kPa(30-255mmHg) Diastolic pressure: 2kPa-29.3kPa(15-220mmHg) Mean pressure: 2.7kPa-31.3kPa(20-235mmHg) Detection accuracy: Static pressure:±4mmHg |
SpO2 | Detection scope: 35%-100% Accuracy: ±2% 80%-100% ±3% 70%-79% |
Heart rate | Scope: 15bpm to 300bpm Accuracy: ±1bpm |
AC adapter | Input:AC100-240v-200mA Output:DC 5V 1A |
Bluetooth | Support both Bluetooth 3.0 and BLE 4.0 |
Built-in-Battery | 3.7V,1800mAh lithium battery |
Service life | Over 10000 times |
Size | 145mm*85mm*37mm |
Weight | 240g |
Display | 2.4 inch color TFT LCD |
Key | Power on and perform functions |
Delivery time | Samples: about 2 days |
Mass production: about 15 days (2000pieces) |
OEM: about 25 days |
1. We will ship the item within 48 hours after receiving your
payment, kindly leave us your shipping address and contact number,
both are very important, thank you!
2. Shipping to worldwide by UPS/DHL/FedEx (5-10 days)
If you have any special requirement, please feel free to contact
our staff immediately, or leave the note in Paypal after your payment, we will provide you the satisfy shipping.
3. We will send you the tracking number after shipment, you also
can ask us for the tracking service.
4. If you haven't received items in 2-3 weeks, please contact us
immediately.
1. All items are new and authorized fanufactured according to CE
standard, with 1 year warranty.
2. Client is reaponsible for the custom clearance and custom duty. If
any, we will not be responisble for the customs clearance and duty,
if you have special requirments for the declaration for your
customs office, please contact us before your payment.
3. Client is responsible for the returning shipping fee.
We are the authorized manufacturer of medical devices since 2003.
Also is the supplier of big hospitals in China,we main products
are:ECG/EKG cable,OEM module,spo2 sensor, different types of pulse
oximeter, infusion PCA pump, nasal cleaner, etc.
Pls contact me for more products and catalogue?
Want to find manufacturer for your interesting products ?
Inquire us now!
We are looking forward to establish the partnership with you!
