BM2000D O2 Portable Wrist Ring Probe Oxygen Level Monitor SpO2 Oximeter

Ask Lasest Price
Brand Name :	Berry
Model Number :	BM2000D
Supply Ability :	10000 Box/Boxes per Day
Price :	$80.00/pieces 1-499 pieces

Add to Cart

Product Details
Company Profile

BM2000D O2 Portable Wrist Ring Probe Oxygen Level Monitor SpO2 Oximeter

BM2000D Sleep monitoring system.Suitable for sleep hypopnea syndrome monitoring

Instructions

BERRY Sleep Apnea Screening Monitor has CE0123, ISO13485, NMPA and we can meet most people's measurements of blood oxygen and pulse rate. It can accurately capture pulse signals and has been validated in numerous clinical trials.

Widely Used In Daily Life

BM2000D applies to Aviation,Snorer,Child,Asthma,COPD

Major Features

1.Watch type, light weight. 2.Simple and convenient, get all function with one touch button. 3.Color OLED display of SpO2, Pulse Rate, Pulse intensity bargraph, and Plethysmogram, indication of battery, Bluetooth. 4.Low power consumption, built-in 3.7v rechargeable lithium battery lasting 24 hours. 5.Automatically screen off after 30s, automatic shutdown after 10 mimutes when probe off or no finger in testing, No manually shutdown. 6.High accuracy under the condition of low perfusion.

Operation Process

1,Download the "BerrySmartHealth" APP from Google Play and Apple Store. 2,Wear the equipment to keep at least 6 hours sleep monitoring. 3,Put on the device and wrap foam spO2 sensor around fingertip. 4,The collected data is transferred to the mobile phone via bluetooth. 5,Display report on phone. 6,Reports can be shared..

Technical Features

Display SpO2, PR	Battery Type: 3.7v (600mAh) Lithium battery
Pulse Rate: Measurement range: 25 - 250bpm Accuracy: ±2bpm	SpO2: Measurement range: 0% - 100% Accuracy: ±2% (70% - 100%)
Size:55(L)x37(W)x18(D)mm	Weight: 52g±1g (Do not contain sensor)
Working Voltage: DC 3.4v ~ DC 4.3v	Free App: “BerrySmartHealth”

Accuracy Of The Test Pulse Rate Test

Blood Oxygen Concentration Test Berry Product Rate VS

Reference heart rate ECG Correlation=0.98, P-value< 0.0001

Average reference oximeter Reference Heart Rate(ECG)

Effective (SaO2) (ECG) [BPM]

Comparison: Reference Pulse Oximeter
Berry Pulse Oximeter	70 ~100	90 ~ 100	80 - < 90	67 - < 80	RESE≤3% Within the range of 70~100%
# pts	240	79	81	81	RESE≤3% Within the range of 70~100%
Error	-0.6	-1.1	-0.9	0.1	Pass
Root mean square error	1.9	1.7	2.0	2.1	Pass

BERRY products have passed the accuracy test, blood oxygen

concentration accuracy <2%,510k requirements<3%

Parameter Comparison Chart

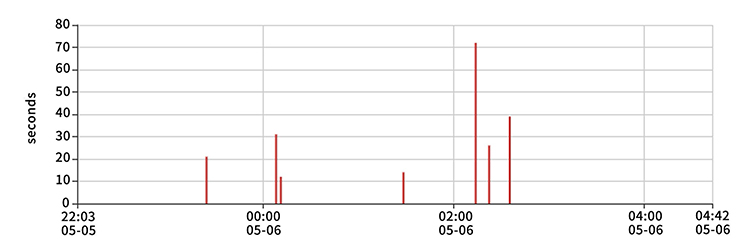

Apnea Trend

Hypopnea Trend

Software Advantage

Blood Oxygen Results

Mean Blood Oxygen Results

Diagnosis Of Hypoxemia OSAHS Diagnosis

PSG vs. ROC Curve

Analysis Of Clinical Trial Results

Mean Blood Oxygen
Average blood oxygen calculation accuracy: 98.51%
Diagnosis of hypoxemia
Sensitivity: 89.29%	Specificity: 77.78%	Accuracy:92.59%

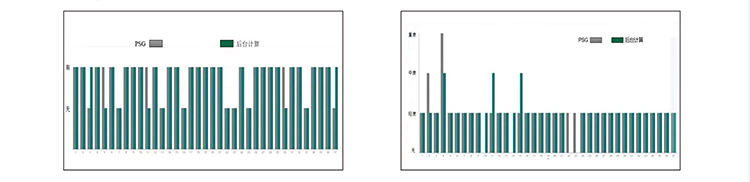

OSAHS Judgment Results
OSAHS Judgment Results
Sensitivity: 94.17%	Specificity: 61.21%	Accuracy:89.62%

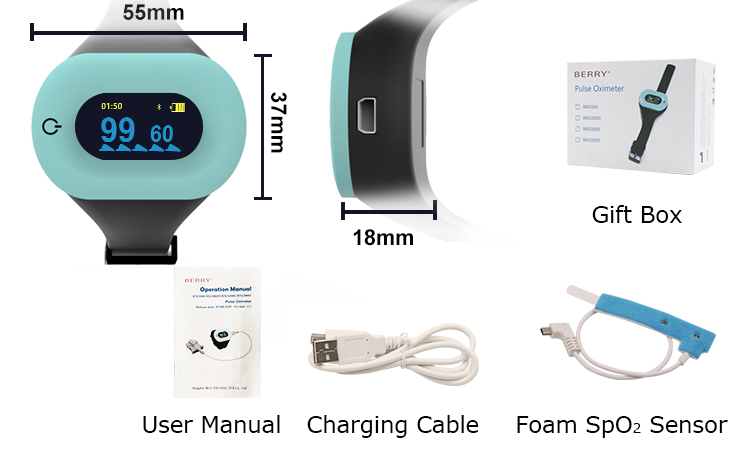

Standard Configuration

1,Foam SpO2 Sensor 2,Charging Cable 3,Gift Box 4,User Manual

Reports can be shared.

Our Factory

Our Bio-Medical technology has reached the domestic advanced level. Important breakthroughs have been made in non-invasive blood pressure calculation methods, blood oxygen saturation detection, and multi-parameter monitoring systems. After years of development, we have established good cooperative relations with customers worldwide, with annual sales reaching tens of millions dollars.
